Shanghai International School Renovation  上海万科总部改建国际学校



上海万科总部改建国际学校
International School Renovation Of Vanke Headquarters,Shanghai,China

建筑面积(GFA):16,630sqm
2015,上海,中国
阶段:竞赛

项目为改造原有办公建筑为国际学校,旨在突破原有办公建筑场地狭小限制、合理化建筑总图布局及功能、营造空间的多样、丰富和舒适性,赋予建筑自然和可持续性的一面。

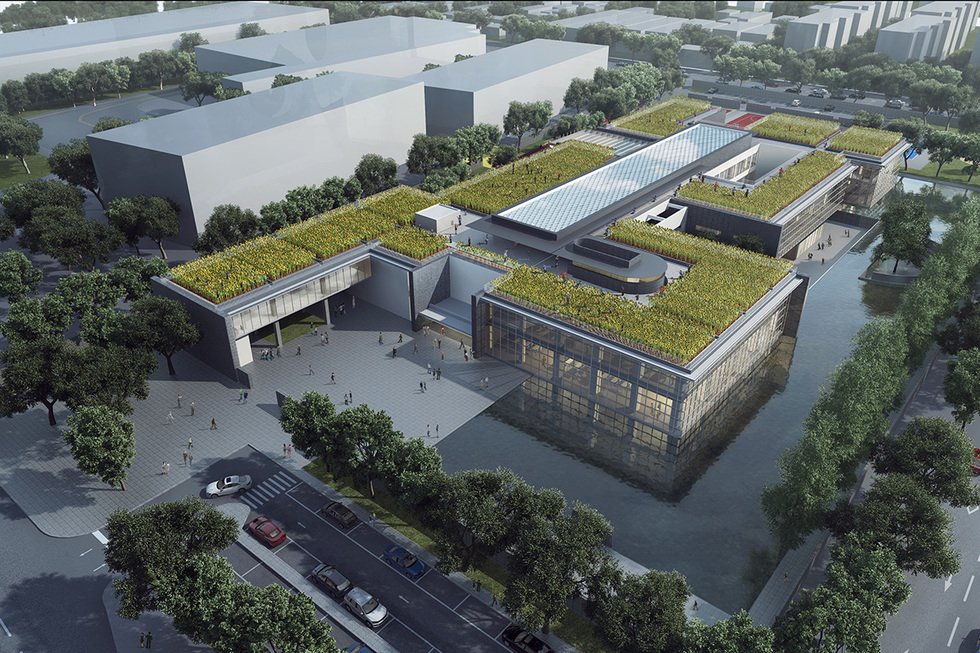

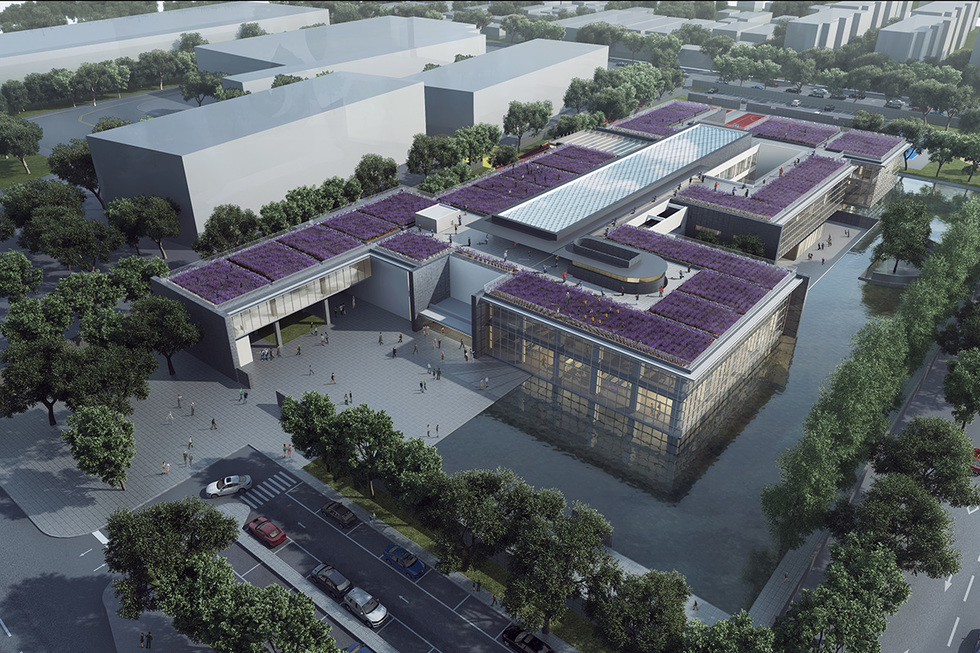

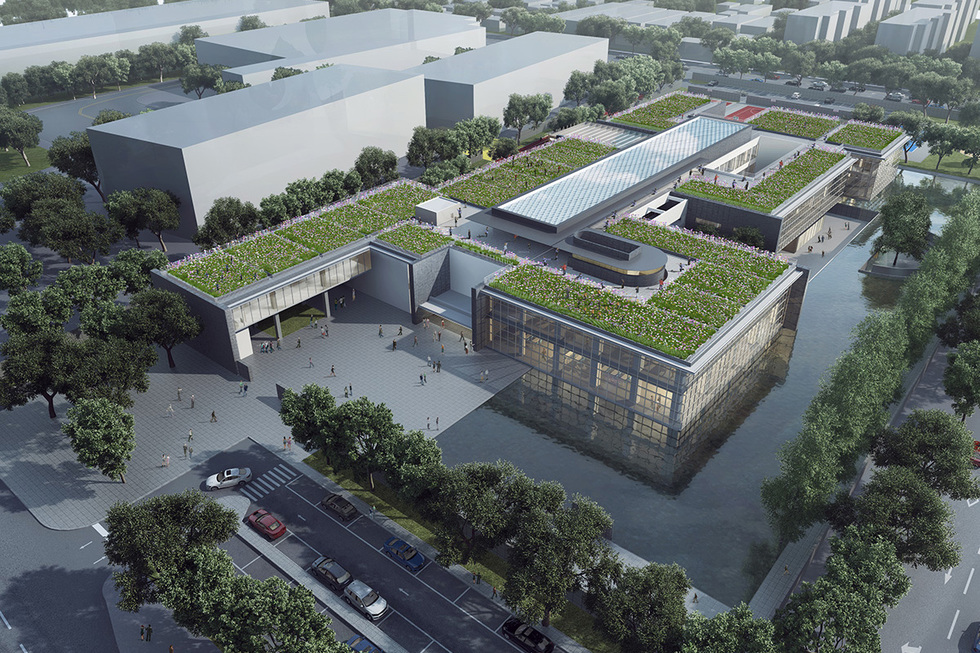

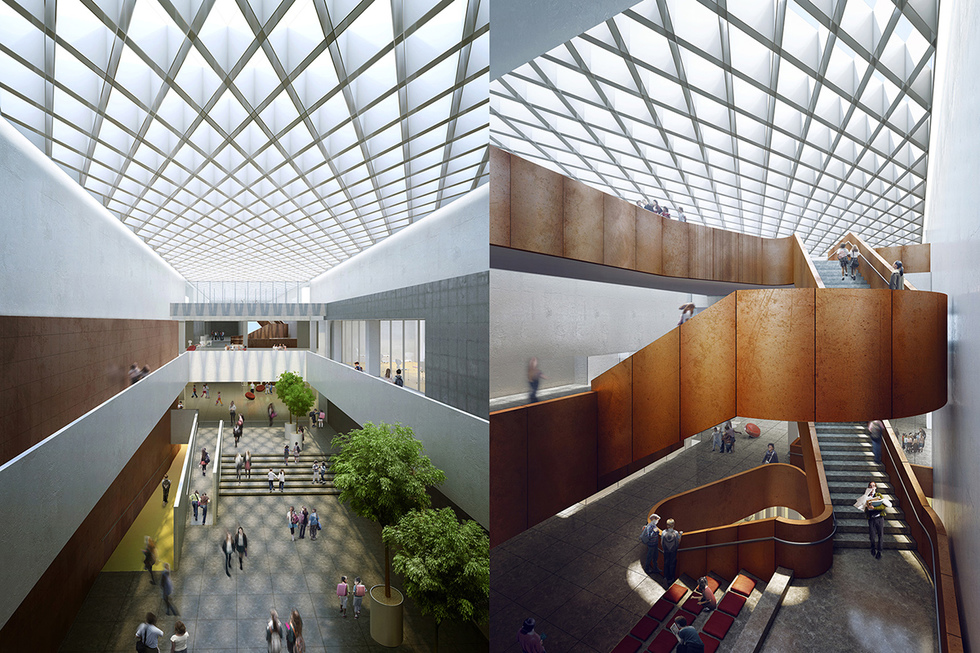

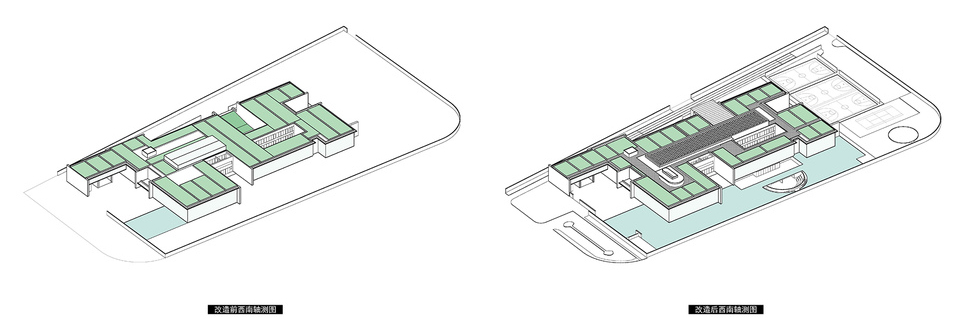

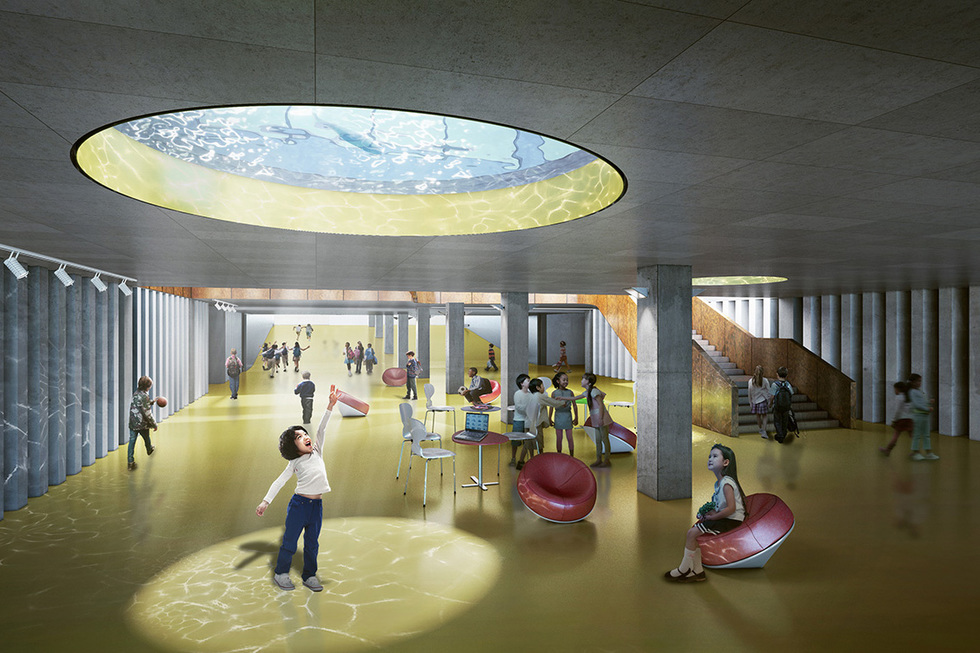

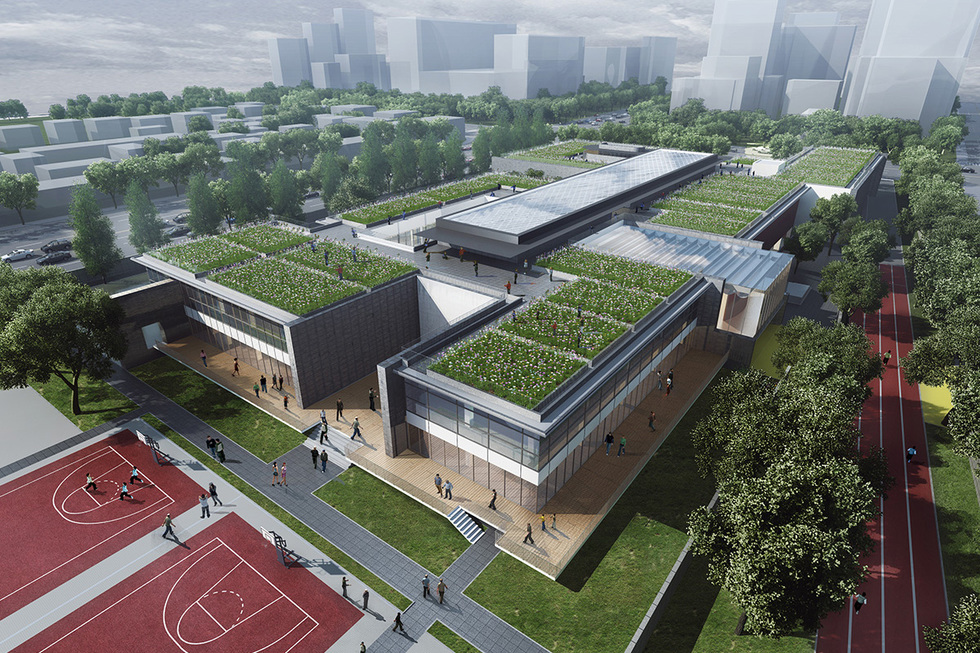

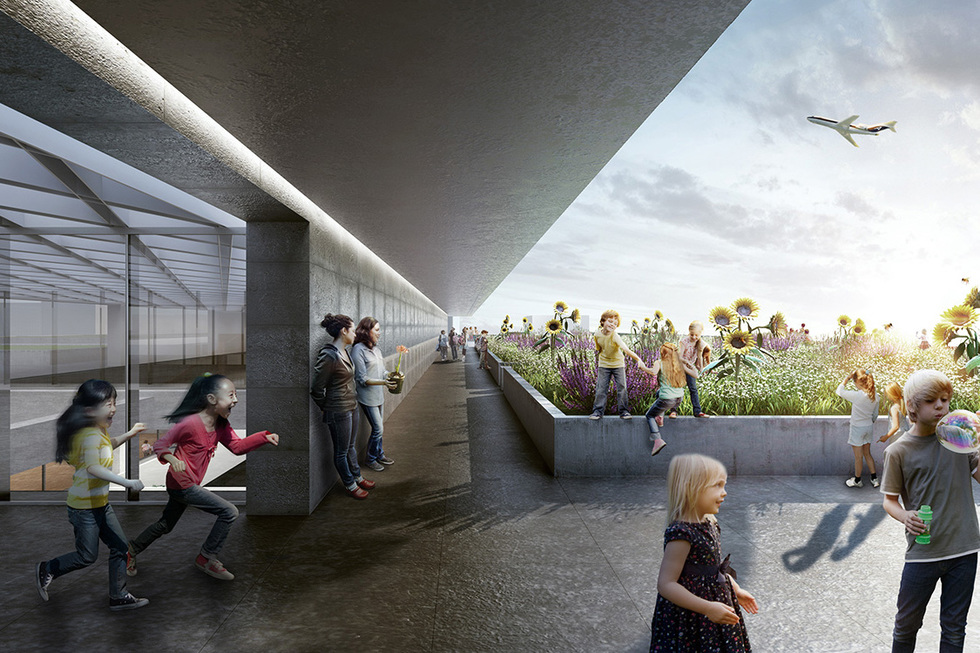

基于现场及原有建筑自身办公属性特点及品质,改造的重点侧重于功能性质变更后的流线梳理及提升空间特点和品质,同时尽可能的维持原有建筑外观及设备的最小改动。通过功能的重新梳理排布,赋予原有覆土厚度极佳的屋面为教学目的的种植和活动屋面,又通过改造原有地下车库为教育附属空间和额外活动场地并且联通首层公共大厅,三大部分通过竖向公共交通流线强有力的整合联通起来,拓展丰富的公共活动空间,以此释放屋面和缓解学校场地狭小带来的公共空间不足的问题。

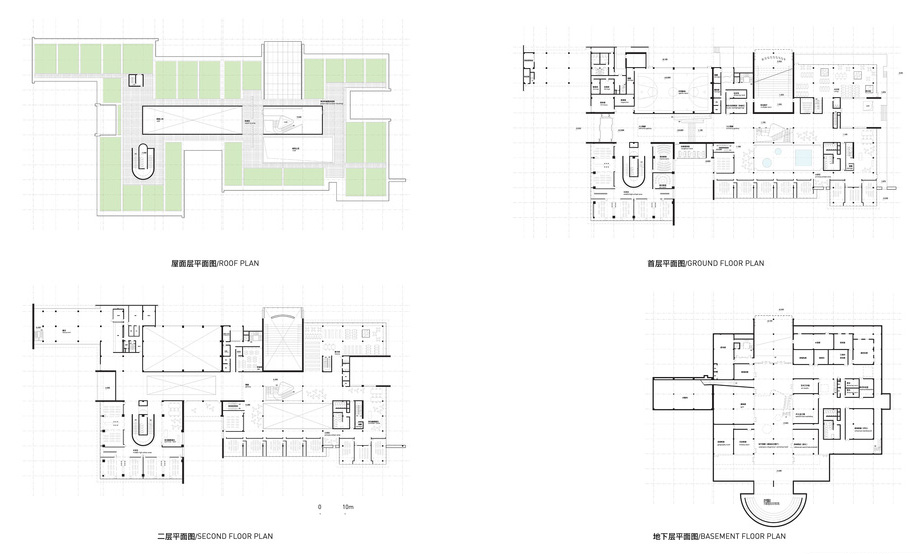

功能布置遵循公共大厅南侧为教室空间,北侧为附属教育及办公空间,动静分区;基本保持原有立面外观,为适应中小学生开启窗扇大小,教学区的玻璃幕墙因此加密了竖向玻璃分割。

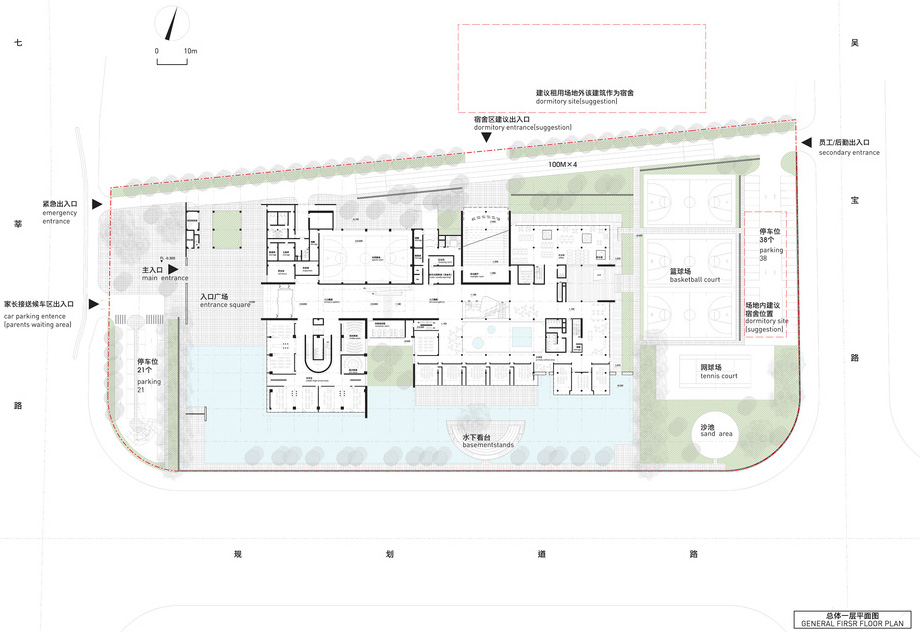

场地东侧改造为体育活动用地,南侧因教学需要变更为静水面,北侧为跑道兼后勤流线。

The project aimed to convert an existing office building into an international school by overcoming the site's limitations due to its small size, rationalizing the building's layout and functions, creating diverse, comfortable, and sustainable spaces, while retaining the original appearance and equipment with minimal modifications.
The renovation followed a design approach that leveraged the site's qualities and characteristics and focused on optimizing the circulation and enhancing the space's features while creating a unique identity for the school. The existing roof with excellent soil cover was repurposed as a teaching and activity roof, and the underground parking was transformed into educational and additional activity space connected to the first-floor public lobby. The three parts were seamlessly integrated and connected by vertical public traffic circulation, expanding and enriching the public activity space and resolving the problem of insufficient public space due to the site's small size.
The functional layout was based on the principle of separating quiet and active areas, with classrooms located on the south side of the public lobby and educational and office spaces on the north side. The facade was predominantly preserved, with modifications made to the glass curtain walls in the teaching area to suit the needs of primary and secondary school students by increasing the window size.
The east side of the site was converted into a sports and activity area, while the south side was transformed into a still water surface for teaching purposes. The north side was designed as a runway and logistics service circulation.
